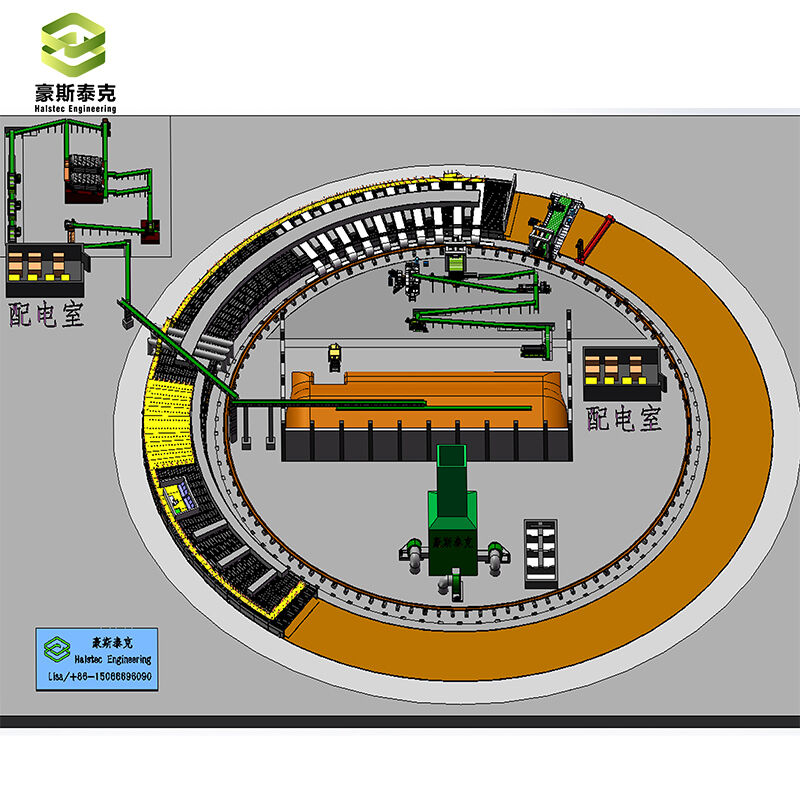

Rotary Tunnel Kiln Introduction:
Rotary Tunnel Kilns are used for the clay brick factories, to solve the brick drying and burning. This new kind of burning kiln is designed by my company and get about 12 Chinese patents. Mobile Rotary Tunnel Kilns can provide customers with daily 100000 bricks, 200000 bricks or 300000 bricks. Compared with traditional Hoffman kilns and masonry kilns, Rotary tunnel kilns with the features of lower investment, higher automation, easy operation, less maintenance, lower damage rate of finished bricks, etc.
When wet brick adobes are produced by brick making machines, Robot stacking system will place these bricks on the ground. After certain time natural drying, mobile rotary tunnel kiln will come, the drying section of kiln will start work firstly, then burning section of kiln will move forwards and start to burn the dried bricks automatically. Bricks just stay on the ground in the whole working procedure, while kiln will move at preset moving speed.
Features:
- Whole kiln system adopts movable design, no need kiln cars and operating machines. This design can reduce around 30% investment for customers
- Suitable for wide range of raw materials, such as construction waste, river sludge, city living waste, etc
- Support pulverized coal and natural gas as burning fuel
- No blowers are fixed on top of kiln, reduce the vibration and prolong the refractory cotton usage life
- Circular chimney with perfect sealing and connection performance with kiln body
- Intelligent monitoring system make burning process can be adjusted according to real-time data
- Compare with other brand kilns, my company kilns can save around 40% electricity, coal and heat
- No maintenance necessaries within first 5-10 years production
Technical Parameters:
| Kiln section |
Capacity |
Diameter-M |
Weight |
| 7.2m |
100000 bricks/day |
120-170m
Advises is 150m
|
250T |
| 8.6m |
200000 bricks/day |
310T |
| 10.8m |
300000 bricks/day |
370T |
| 12.98m |
400000 bricks/day |
420T |
| 16.8m |
600000 bricks/day |
580T |
Rotary Tunnel Kiln Show:
Kiln Body
Kiln Top
Inside the Kiln
Finished Bricks
Project Show:
Uzbekistan
Project: Uzbekistan Rotary Kiln
Kiln Location: Tashkent
Kiln Section: 12.98m
Kiln Capacity: 800,000 bricks /day
Materials: mountain earth, coal gangue
Quang Binh, Vietnam
Project: Quang Binh, Brick Factory
Location: Quang Binh, Vietnam
Kiln Capacity: 400,000-500,000 bricks /day
Materials: shale, river sludge, construction waste, industrial tailings
Zimbabwe
Project: Yudao Brick FactoryLocation: Harare, Zimbabwe
Kiln Section: 12.98m
Daily Output: 400,000 bricks/day
Brick Size: 225*111*69mm
